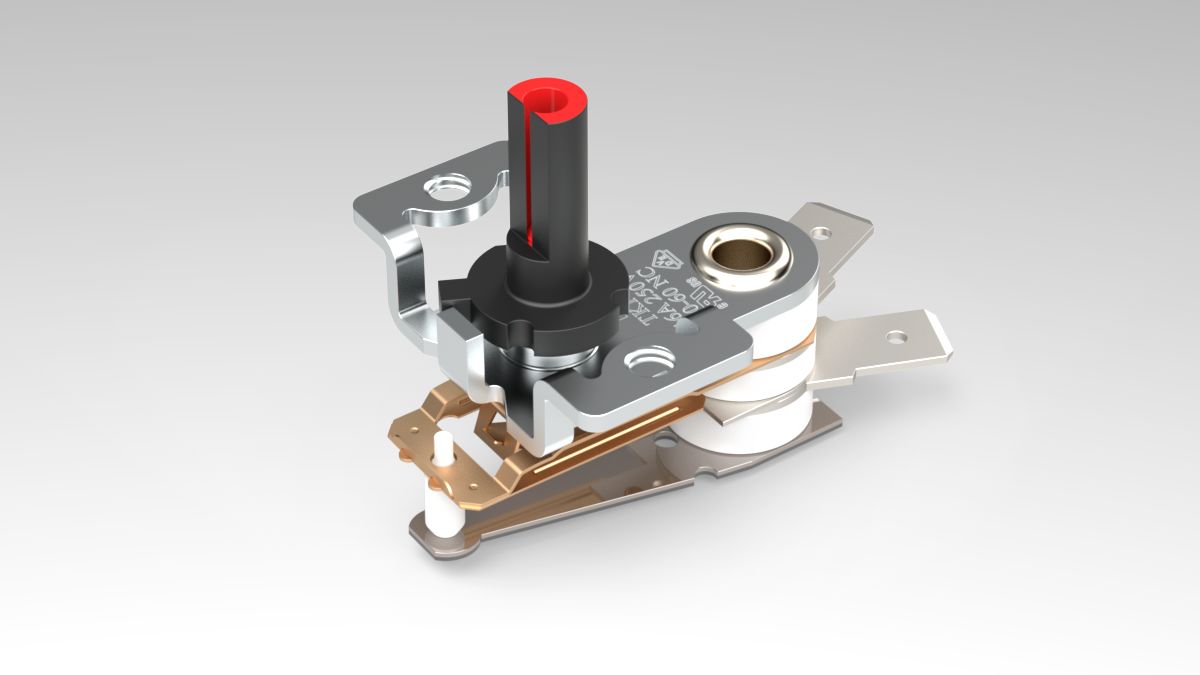

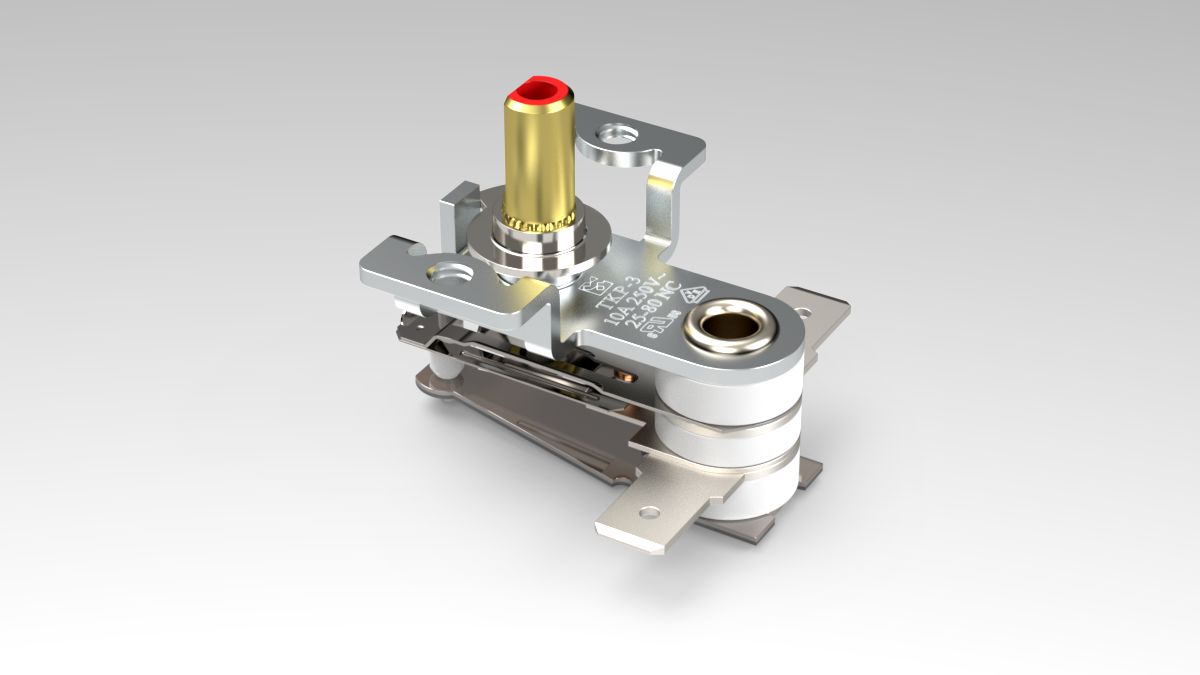

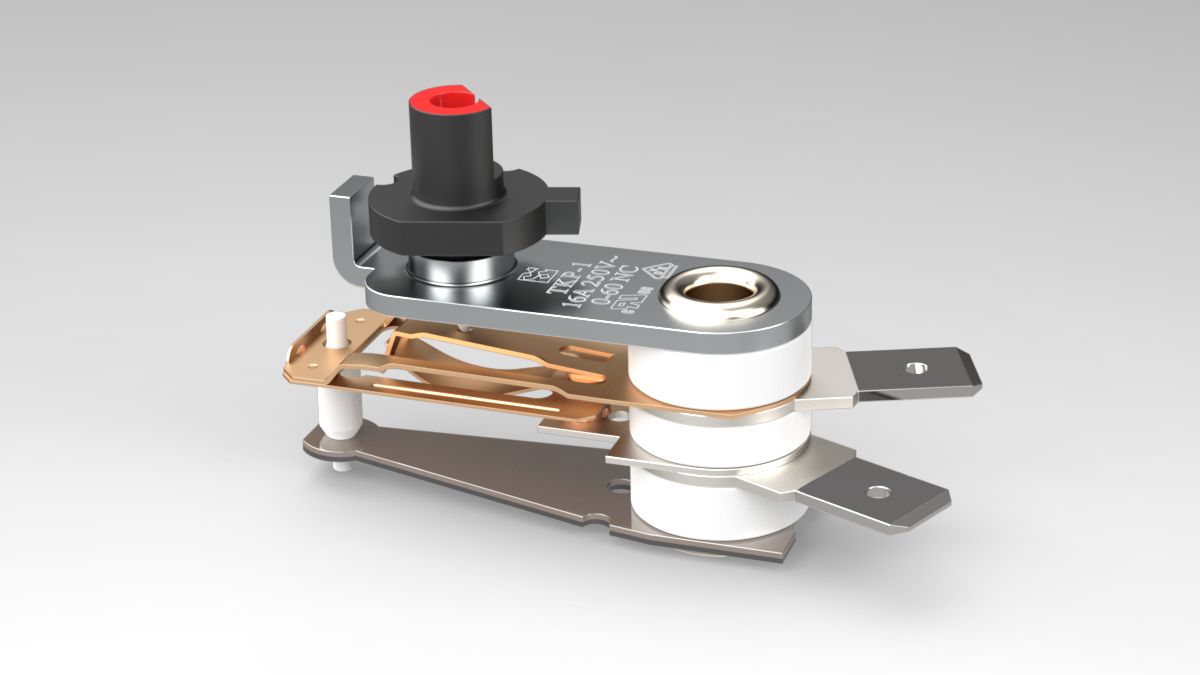

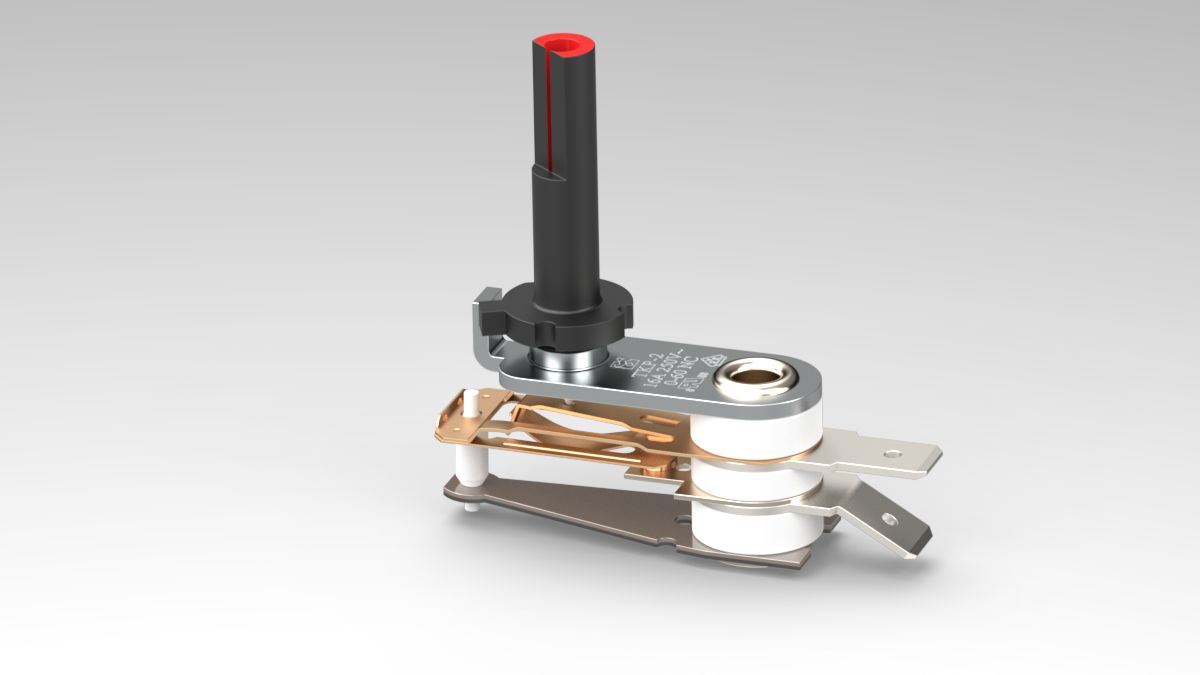

Automatic temperature range sensitive device - Thermorex TKP
This is a cyclic operation temperature sensitive device, which is intended to keep temperature between two particular values under normal operating conditions, automatically switching on or off the electrical circuit. Once the temperature of the bimetal plate has returned to the specified reset temperature, the contacts will automatically return to their original state. Operating temperature of this thermostat is adjusted by rotating the shaft.
This thermostat can be built to either open or close its electrical contacts as the temperature increases.
The current sensitive model of this thermostat is also available. In this case it is also a regulator of energy.
These thermostats are widely used throughout the heating and cooling appliance industry and are designed for smooth regulation of temperature for variety of heating and cooling devices.
Download the product brochure| Parameter | Value |
|---|---|
| Rated voltage, V, not more | ~250 |
| Rated current, A, at power coeff. 0.95, not more | 16; 10 |
| Rated current, A, at power coeff. 0.6, not more | 2.6; 1.6 |
| Number of automatic cycles, at rated current 16 А and power coeff. 0.95, not less than | 100000 |
| Control ranges, °C | min. 60; max 225 |
| Operating temperature, °C | -45°C — 250°C |
| Tolerance of operating temperature, °C | ±3; ±5; ±8; ±10 |
| Reset temperature, lower than operating temperature, °C, by | 5; 8; 10; 15 |
| Transient resistance, Ω, not more | 0.01; 0.05 |
| Electric strength of insulation, V, not less than | 1500 |
| Insulation resistance, MΩ, not less than | 50 |
| Turning range, angle degree | 270°; 306° |
| Heating speed, K/min | 1.0 |
